Barra
A Wire Rod product processed by drawing, cutting and correction treatment, which requires attractive surface and precision processability.

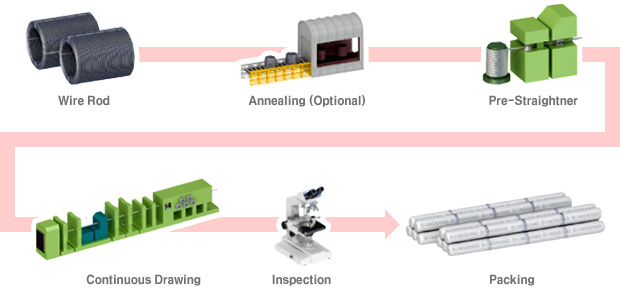

Proceso

Maquinaria
Cutting	Type Quantity Capacity Press Cut Type (80 tons press) 2 Presses 4,000 Tons/Year

Especificación de HR/Peeled Bar
Grade		JIS	AISI (SAE)
Carbon Steel		S10C~S55C, SWRM8K	1008~1055
Alloy Steel	Cr-Mo	SCM415(RCH), 420(RCH), 430, 435RCH, 440(RCH), SCR420RCH	4130, 4137, 4140, 5140
		SNCM220(RCH), 240(RCH), 415, 420(RCH), 431, 439(RCH), 447 (RCH), 616(RCH), 625, 630, 815	43XX, 47XX, 86XX, 87XX
	Ni-Cr-Mo	SNCM220	8620
	Boron	S35CB, S45CB, SCR420B, SCR440B,SMn433B	10B35, 10B45,51B20, 51B40,15B36
SUJ & SUP	SUJ	SUJ2	52100
	SUP	SUP9A, 9D, 10,11A	5155, 6150
Free Cutting Steel	SUM	SUM21, 22, 23, 31, 32, 43	1212, 1213, 1215, 1141

Especificación de CD Bar
Grade		JIS	AISI (SAE)
Carbon Steel		SWRCH6A - 22A, SWRCH10 - 50K	10XX*
Alloy Steel	Ni-Cr	SNC236, 415(RCH), 631(RCH), 815(RCH), 836	-
	Ni-Cr-Mo	SNCM220(RCH), 240(RCH), 415, 420(RCH), 431, 439(RCH), 447(RCH), 616(RCH), 625, 630, 815	43XX, 47XX, 86XX, 87XX
	Cr	SCR415(RCH), 420(RCH), 430(RCH), 435(RCH), 440(RCH), 445	50XX, 51XX
	Cr-Mo	SCM415(RCH), 418(RCH), 420(RCH), 421, 425, 430(RCH), 432, 435(RCH), 440(RCH), 445(RCH), 822(RCH)	41XX
	Mn	SMn402(RCH), SMn433, SMn438, SMn443	13XX, 15XX
	Mn-Cr	SMnC420(RCH), 443(RCH)	-
	Mo	-	40XX, 44XX
	Ni-Mo	-	46XX, 48XX

Dimensión Manufacturable [unit : mm]
Product	Diameter	Length	Unit Weight(kgs)
HR Bar	25 ~ 130	4,000 ~ 8,000	15 ~ 833
Peeled Bar	12 ~ 80	4,000 ~ 7,500	3.5 ~ 296
CD Bar	10 ~ 30	4,000 ~ 6,000	2.5 ~ 33
