Alambre

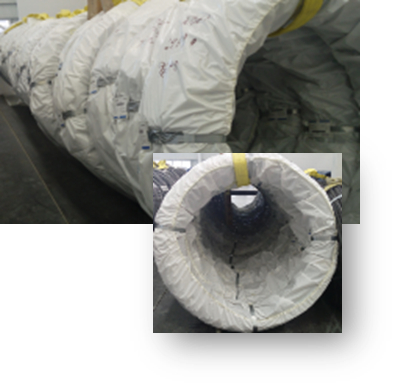

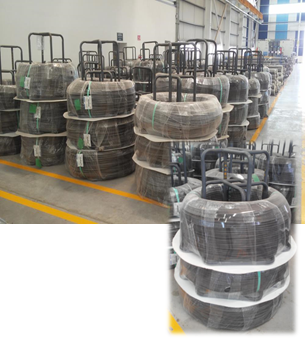

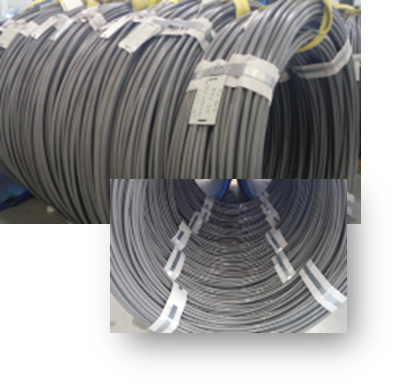

CHQ Wire is a wire rod product processed (annealing, BRL, BCA, drawing) for easy cold heading or cold forging, which requires strict quality control that can satisfy cold molding conditions.

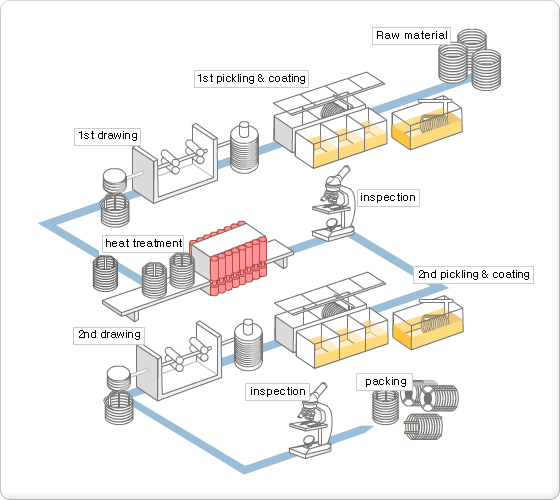

Proceso


Maquinaria
Annealing
    Type     Quantity Capacity
Bell Type 3 Bases 2 Bells
(50 Ton/Bell)		 25,000 Tons/Year
Pickling and Coating
Type     Quantity     Capacity
Transfer Unit Type      1 Line 25,000 Tons/Year
Drawing
Type Quantity Capacity
Block Type
(ECT included)		 4 Lines
(32,34,36,42”) 		25,000 Tons/Year


Especificación
Grade JIS AISI (SAE)
Carbon Steel SWRCH6A - 22A, SWRCH10 - 50K 10XX*
Alloy Steel Ni-Cr SNC236, 415(RCH), 631(RCH), 815(RCH), 836 -
Ni-Cr-Mo SNCM220(RCH), 240(RCH), 415, 420(RCH), 431, 439(RCH), 447(RCH), 616(RCH), 625, 630, 815 43XX, 47XX, 86XX, 87XX
Cr SCR415(RCH), 420(RCH), 430(RCH), 435(RCH), 440(RCH), 445 50XX, 51XX
Cr-Mo SCM415(RCH), 418(RCH), 420(RCH), 421, 425, 430(RCH), 432, 435(RCH), 440(RCH), 445(RCH), 822(RCH) 41XX
Mn SMn402(RCH), SMn433, SMn438, SMn443 13XX, 15XX
Mn-Cr SMnC420(RCH), 443(RCH) -
Mo - 40XX, 44XX
Ni-Mo - 46XX, 48XX


Dimensión Manufacturable [unit : mm]
Diameter Range Wire Drawing Machine Inner Dia. Outer Dia. Unit Weight
4.0 - 30.0 4 - 8 32" 700 125 100 - 1000
6 - 12 34" 750 1300 300 - 1000
10 - 20 36" 850 1550 500 - 2500
18 - 30 42" 900 1600 500 - 2500
